Product Product Hitex Diamond Cladding System (HDCS) (1.0)Exterior Insulation Finish System comprising 60mm EPS Polystyrene with fibreglass reinforced modified plaster and integral colour texture
Document Hitex Diamond Cavity Cladding 50mm Drawings
Moderated in 2008
Document Hitex Diamond Cavity Cladding Council Approvals
Document Hitex Diamond Cavity Cladding Research Testing and Opinions
Document Hitex Diamond Cavity Cladding System Information
Document 01 Modern House
01 Modern House.png
Document 02 Evaporation
02 Evaporation.png

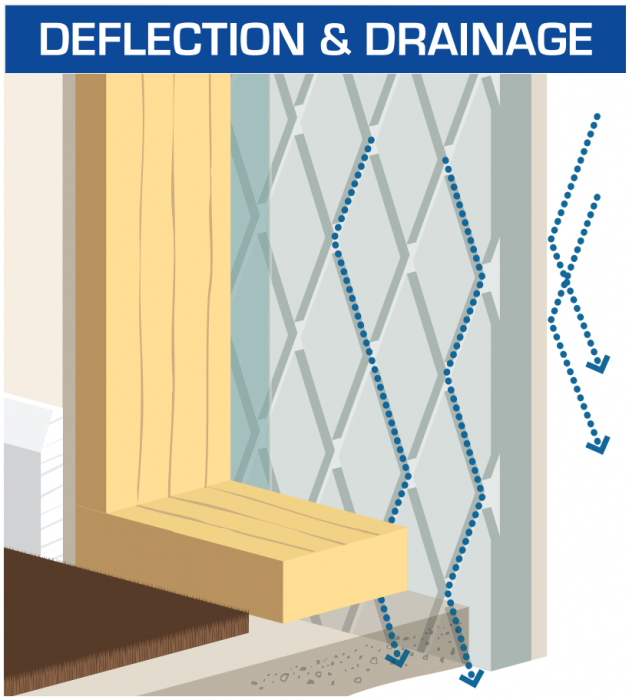

Document 03 Deflection and Drainage
03 Deflection and Drainage.png
Document 04 Venting
04 Venting.pngProvide ventilation
Air can flow through behind the cladding
Document logo

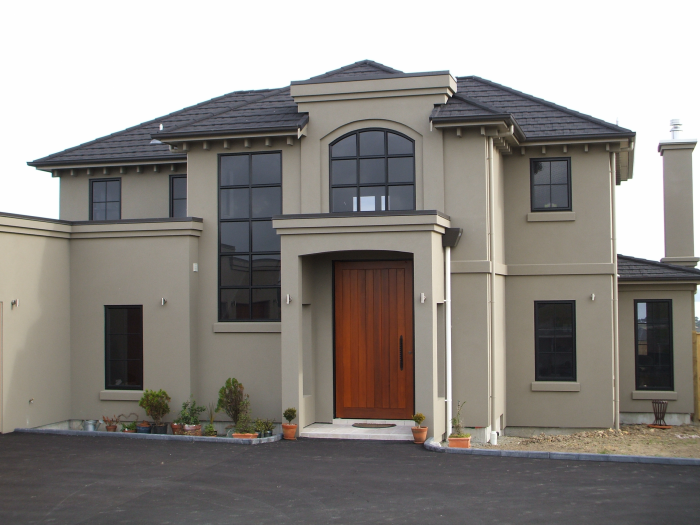

logo.pngModern House with Hitex Cladding
How it works
Extensive research and the resulting science is used to keep your home drier, warmer and healthier with lower energy costs. Excess moisture in the timber framing evaporates into the stud space and becomes gaseous molecules suspended in the air. These molecules move through the building paper and are transported safely to the outside by the Diamond Cavity grooves. Extensive drying tests by the University of Auckland confirm that the Hitex Diamond Cavity System can dry out a wet bottom plate in just 10 days, providing the leak has been fixed. No more building delays because the builder can proceed with the job confident that the bottom plate can dry out, even during winter.
